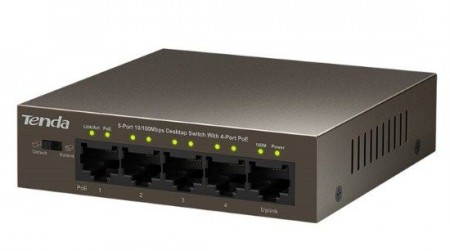

Tenda TEF1105P Switch
Šifra artikla: 95108
- Opis
- Tehnička dokumentacija
- Komentari
Standard ProtocolIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at Interface5*10/100Mbps auto-negotiation ports, port1 to port4 support IEEE802.3 at/af PoE standard Network Media10BASE-TX: UTP category 5, 5e cable (?250m) 100BASE-TX: UTP category 5, 5e cable (?150m) Forwarding Mode10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port Backbound Bandwidth1Gbps MAC Address Table1K transmission modeStore-And-Forward Indicator5*Link/Act , 4*PoE Status, 1*Power,1* 100Mbps Input PowerExternal Power Supply: DC: 51V/1.25A Consumption2 Watts (max. no PD connected) 63 Watts (max. with 58W PD connected) Dimension100mm*100mm*26mm(L*W*H) Weight 2kg PoE Total Power58W Temperature-10oC ~ 45oC Humidity10%-90%RH (non-condensing) CertificationFCC/CE/RoHS/EAC/BIS/RCM
