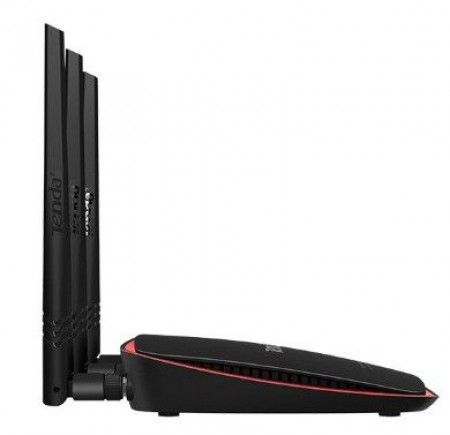

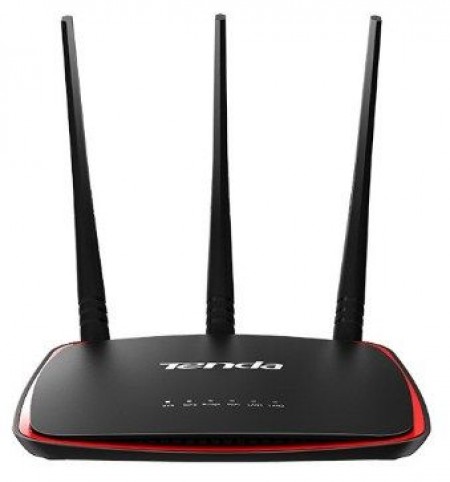

Tenda AP5 Repeater
Šifra artikla: 95120
- Opis
- Tehnička dokumentacija
- Komentari
Dimension148*146.2*31.5mm Standard ProtocolIEEE 802.11n/g/b Interface2 * 10/100M Ethernet Port (RJ45) Antenna3*5dBi Detachable Omni Directional (RP-SMA) Button1*Reset 1*Range Extender Power MethodDC 12V=1A Passive PoE Passive PoE power supplyUp to 40 meters Passive PoE is supported(cat5e or up) Reception Sensitivityb mode: 1M -89dBm@8% 11M -87dBm@8% PER g mode: 54M -74dBm@8% PER; n mode: 72.2M -74dBm@8% PER 150M -72dBm@8% PER LEDSYS,WPS,Bridge,WiFi,LAN1,LAN2 Hardware DeploymentDesktop/Wall Mount Frequency Range2.4GHz-2.483GHz LAN SettingsStatic IP Dynamic IP DHCP ServerDHCP Server Clients list Wireless Rate11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Operating ModeAccess Point Universal Repeater Station(Client) WISP (Client+Router) Client+AP Wireless Function8 SSID Enable/Disable Wireless Radio Broadcast SSID SSID Hidden automatically when exceed client limit Client limit for SSID Transmission output power AP isolation RSSI threshold for wireless clients WMM capable APSD capable Access control based mac address Wireless Client list VLAN for multi SSID Wrieless Security64/128 WEP WPA-PSK WPA2-PSK WPA WPA2-PSK WPA WPA2 Video user capacity5 wireless users capacity20+ Diagostic ToolWireless site survey Ping Traceroute Network ServiceSchedule Reboot Http/Https Managed by ACAC500 Package Content300Mbps Wireless N High Power Access Point AP5 1*PoE Injector 1*Quick Installation Guide 1*Ethernet cable 1*Power Adapter 2*Screws 2*Plastic Bolt Management ToolReboot Restore to factory default System Log Firmware update Time Date Setting Backup/Restore Configuration Username Managerment TemperatureOperating Temperature:-10?~45? Storage Temperature: -30?~70? HumidityOperating Humidity:10%~90% non-condensing Storage Humidity:5%~90% non-condensing Default SettingsIP Address: 192.168.0.254 Login Username:admin Login Password:admin CertificationFCC/CE/Rohs/VoC
Ocena:
