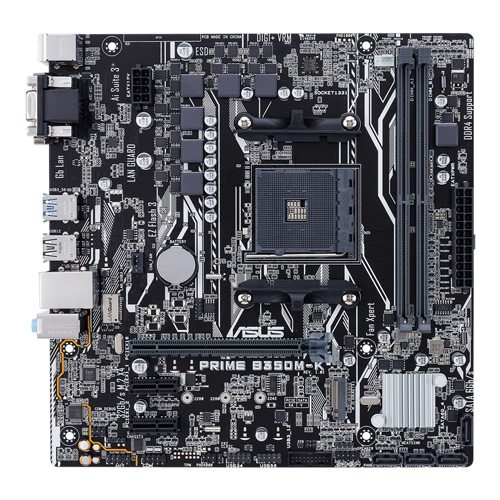

AM4 ASUS AMD PRIME B350M-K
Šifra artikla: 86205
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | AMD procesori AM4 podnožja AMD Ryzen™/sedma generacija A-series/Athlon™ procesora Podržava procesore do 8 jezgara. |
| Memorijski slotovi | AMD Ryzen™ procesori 2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory AMD sedma generacija A-series/Athlon™ procesora 2 x DIMM, Max.32GB, 2400/2133 MHz Non-ECC, Un-buffered Memory Dvo-kanalna memorijska arhitektura * Hyper DIMM podrška zavisi od karakteristika procesora |
| Slotovi | AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B350 chipset 2 x PCIe 2.0 x1 |
| Skladišni interfejs | AMD B350 chipset : Podržava Raid 0, 1, 10 AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
| Mrežni adapter | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC |
| Konektori na zadnjoj strani | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s) |
| Interni priključci | 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
| Integrisana grafika | Podrška za integrisanu AMD Radeon™ R serije grafiku u sedmoj generaciji A-serije APU procesora Dva izlaza: DVI/ RGB - Podržava DVI-D sa maksimalnom rezolucijom 1920 x 1200 @ 60 Hz - Podržava RGB sa maksimalnom rezolucijom 1920 x 1200 @ 60 Hz Maksimalna deljena memorija 2048 MB |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
