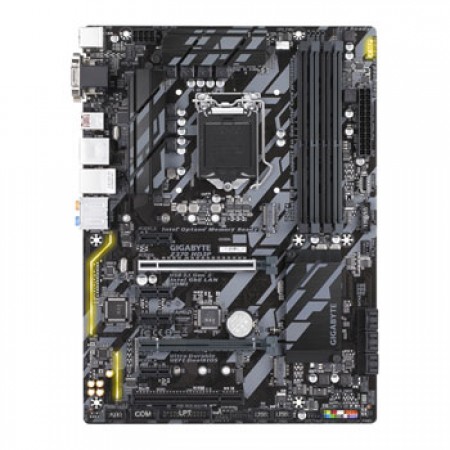

1151 Gigabyte Intel Z370 HD3P
Šifra artikla: 88997
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | 1151 |
| Čipset | Intel® Z370 Express Chipset |
| Memorijski slotovi | 4 x DDR4 DIMM Max 64GB |
| Slotovi | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x16 slot, running at x4 4 x PCI Express x1 slots 1 x PCI slot |
| Skladišni interfejs | 1 x M.2 connector 1 x M.2 connector 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| Mrežni adapter | Intel® GbE LAN chip (10/100/1000 Mbit) |
| Audio | Realtek® ALC1220 codec High Definition Audio 2/4/5.1/7.1-channel |
| Povezivanje | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) |
| Interni priključci | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan 3 x system fan 1 x RGB LED strip 1 x front panel 1 x front panel audio 1 x USB Type-C header, with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 1 2 x USB 2.0/1.1 1 x S/PDIF Out 1 x Trusted Platform Module (TPM) 1 x serial port 1 x parallel port 1 x Clear CMOS jumper |
| Format | ATX |
| Integrisana grafika | Integrated Graphics Processor-Intel® HD Graphics support Support for AMD Quad-GPU CrossFireX and 2-Way AMD CrossFire technologies |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
Ocena:
