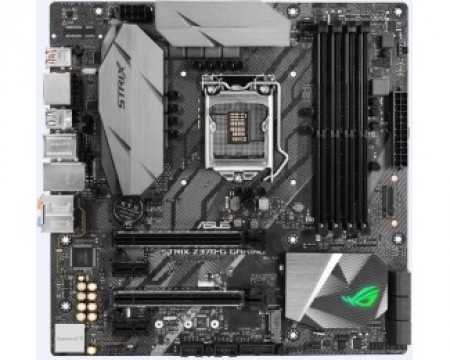

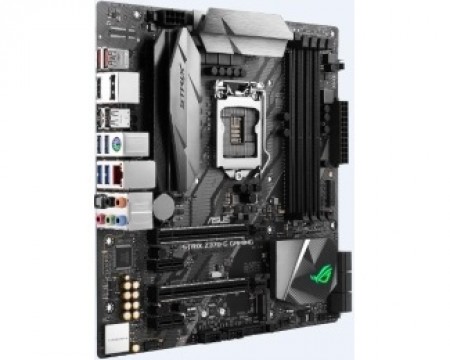

1151 ASUS ROG STRIX Z370-G GAMING
Šifra artikla: 89514
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | Intel® Socket 1151 za 8. Generaciju Core™ Procesora Podržava Intel® 14 nm CPU Podržava Intel® Turbo Boost Tehnologiju 2.0 *Podrška za The Intel® Turbo Boost Tehnologiju 2.0 zavisi od tipa procesora. |
| Čipset | Intel® Z370 |
| Memorijski slotovi | 4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dvo-kanalna memorijska arhitektura Podržava Intel® Extreme Memory Profile (XMP) *Maksimalna memorijska frekfencija zavisi od tipa procesora |
| Slotovi | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 2 x PCIe 3.0/2.0 x1 |
| Skladišni interfejs | Intel® Z370 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Podržava Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
| Mrežni adapter | Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard ROG GameFirst Technology |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Detekcija impedanse na prednjim i zadnjim izlazima slušalica - Podržava : Jack-detection, Multi-streaming, Front Panel Jack-retasking - Visoko kvalitetni 120 dB SNR stereo playback izlaz i 113 dB SNR ulaz za snimanje (Line-in) - Supports up to 32-Bit/192kHz playback *5 Audio Feature : - SupremeFX Shielding™ Technology - Optički S/PDIF izlaz na zadnjem panelu - Sonic Radar III - Sonic Studio III + Sonic Studio Link |

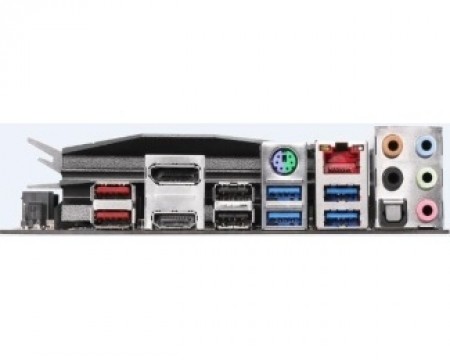

| Konektori na zadnjoj strani | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A 2 x USB 2.0 4 x USB 3.1 Gen 1 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Interni priključci | 1 x AAFP connector 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x CPU_OV jumper |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information. |
| Integrisana grafika | Podržava grafiku instaliranu u procesoru. Multi-VGA podrška : HDMI/DisplayPort port - Podržava HDMI sa maksimalnom rezolucijom 4096 x 2160 @ 24 Hz - Podržava DisplayPort sa maksimalnom rezolucijom 4096 x 2304 @ 60 Hz Maksimalna deljena memorija1024 MB Podržava Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Podržava do 3 monitora istovremeno. |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
