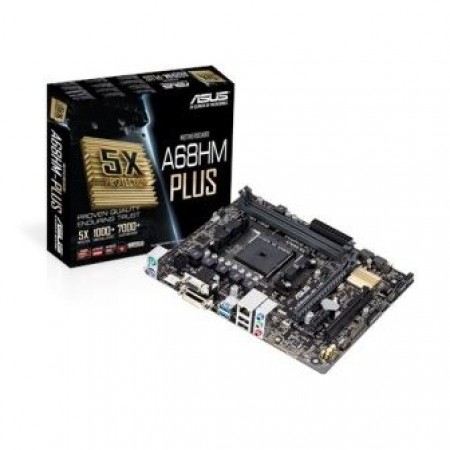

FM2+ ASUS A68HM-PLUS
Šifra artikla: 55664
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | AMD Socket FM2+ |
| Čipset | AMD A68 FCH (Bolton D2H) |
| Memorijski slotovi | - 2 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory - Dual Channel Memory Architecture - Support AMD Memory Profile (AMP) memory - * The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market. |
| Slotovi | - 1 x PCIe 3.0/2.0 x16 *2 - 1 x PCIe 2.0 x1 - 1 x PCI |
| Skladišni interfejs | - AMD A68H FCH (Bolton D2H) chipset : - 4 x SATA 6Gb/s port(s), gray - Support Raid 0, 1, 10, JBOD |
| Mrežni adapter | - Realtek® 8111GR, 1 x Gigabit RJ45 Controller(s) |
| Audio | Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *3 - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Povezivanje | - 1 x PS/2 keyboard (purple) - 1 x PS/2 mouse (green) - 1 x DVI - 1 x D-Sub - 1 x HDMI - 1 x RJ45 (RJ45) port(s) - 2 x USB 3.0 - 2 x USB 2.0 - 3 x Audio jack(s) |
| Interni priključci | - 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) - 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) - 1 x TPM connector(s) - 1 x COM port(s) connector(s) - 4 x SATA 6Gb/s connector(s) - 1 x CPU Fan connector(s) - 1 x Chassis Fan connector(s) - 1 x S/PDIF out header(s) - 1 x 24-pin EATX Power connector(s) - 1 x 4-pin ATX 12V Power connector(s) - 1 x Front panel audio connector(s) (AAFP) - 1 x Internal speaker connector(s) - 1 x System panel(s) |
| Format | |
| Integrisana grafika | Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz - Supports DVI with max. resolution 2560 x 1600 @ 60 Hz - Supports RGB with max. resolution 1920 x 1600 @ 60 Hz Maximum shared memory of 2048 MB |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
