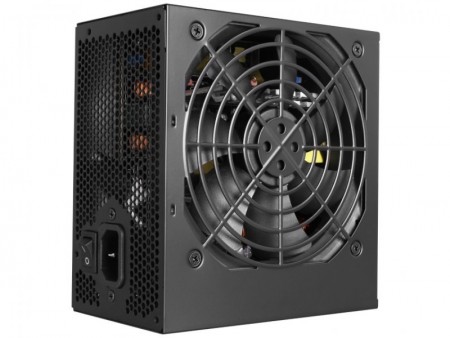

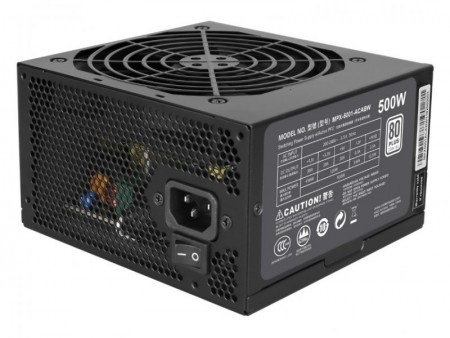

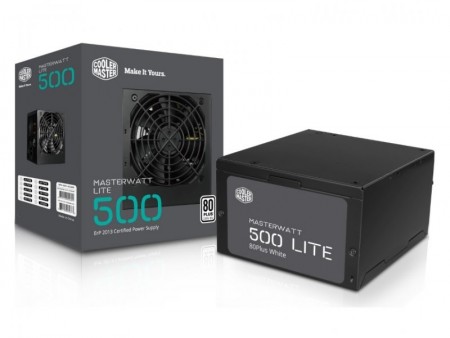

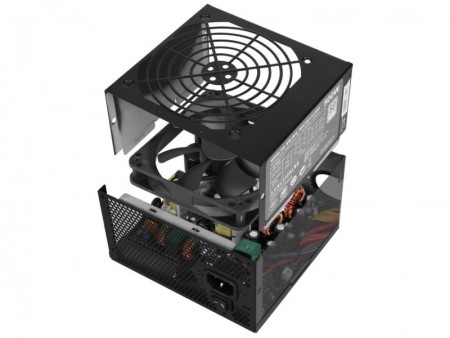

COOLER MASTER MasterWatt Lite 500W napajanje (MPX-5001-ACABW-EU) 3Y
Šifra artikla: 82660
- Opis
- Tehnička dokumentacija
- Komentari
| Tip | Active PFC |
| ATX standard | 12V v2.31 |
| Snaga | 500 W |
| Efikasnost | >85% |
| Faktor snage | >0.9 |
| Vrsta kablova | Fiksni |
| Sistemi zaštite | OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), SCP (Short-Circuit Protection), OPP (Over Power (Load) Protection) |
| 1 | 38A |
| Maksimalna kombinovana snaga | 456W |
| +5V | 20A |
| +3.3V | 20A |
| Maksimalna kombinovana snaga | 120W |
| ATX 24pin | 24(20+4)pin |
| ATX 8pin (EPS 12V) | 8(4+4)pin |
| PCI Express 8pin | 2x 8(6+2)pin |
| SATA | 6 |
| Molex 4pin | 3 |
| Ostali priključci | 1x Floppy |
| Tip | Aktivno |
| Broj ventilatora | 1 |
| Dimenzije ventilatora | 120mm x 120mm |
| Dodatne funkcije | AFC (Automatic Fanspeed Control) |
| Dimenzije | 150mm x 140mm x 86mm |
| Reklamacioni period | 3 godine |
