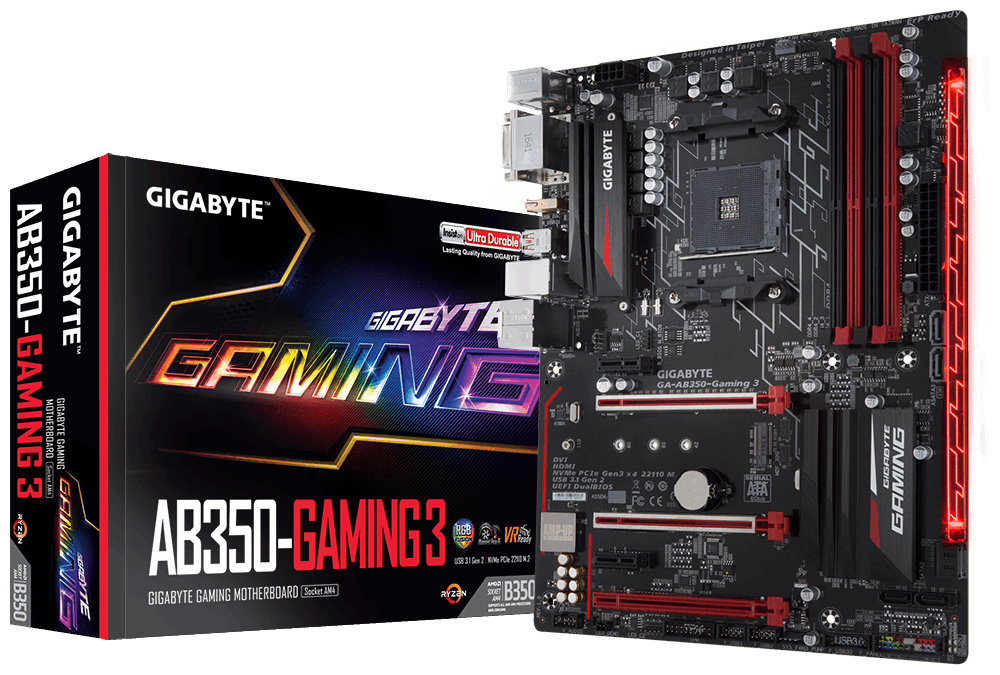

AM4 Gigabyte GA-AB350-Gaming
Šifra artikla: 84474
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | AM4 |
| Čipset | AMD B350 |
| Memorijski slotovi | 4 x DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules * Support for higher than DDR4 2667 MHz may vary by CPU. |
| Slotovi | 1 x PCI Express x16 slot running at x16 (PCIEX16) 1 x PCI Express x16 slot running at x4 (PCIEX4) 3 x PCI Express x1 slots |
| Skladišni interfejs | 1 x M.2 connector 6 x SATA 6Gb/s Support for RAID 0, RAID 1, and RAID 10 |
| Mrežni adapter | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| Povezivanje | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 3.1 Gen 2 Type-A ports (red) 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) |
| Interni priključci | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper |
| Format | ATX |
| Integrisana grafika | Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Maximum shared memory of 2 GB |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
