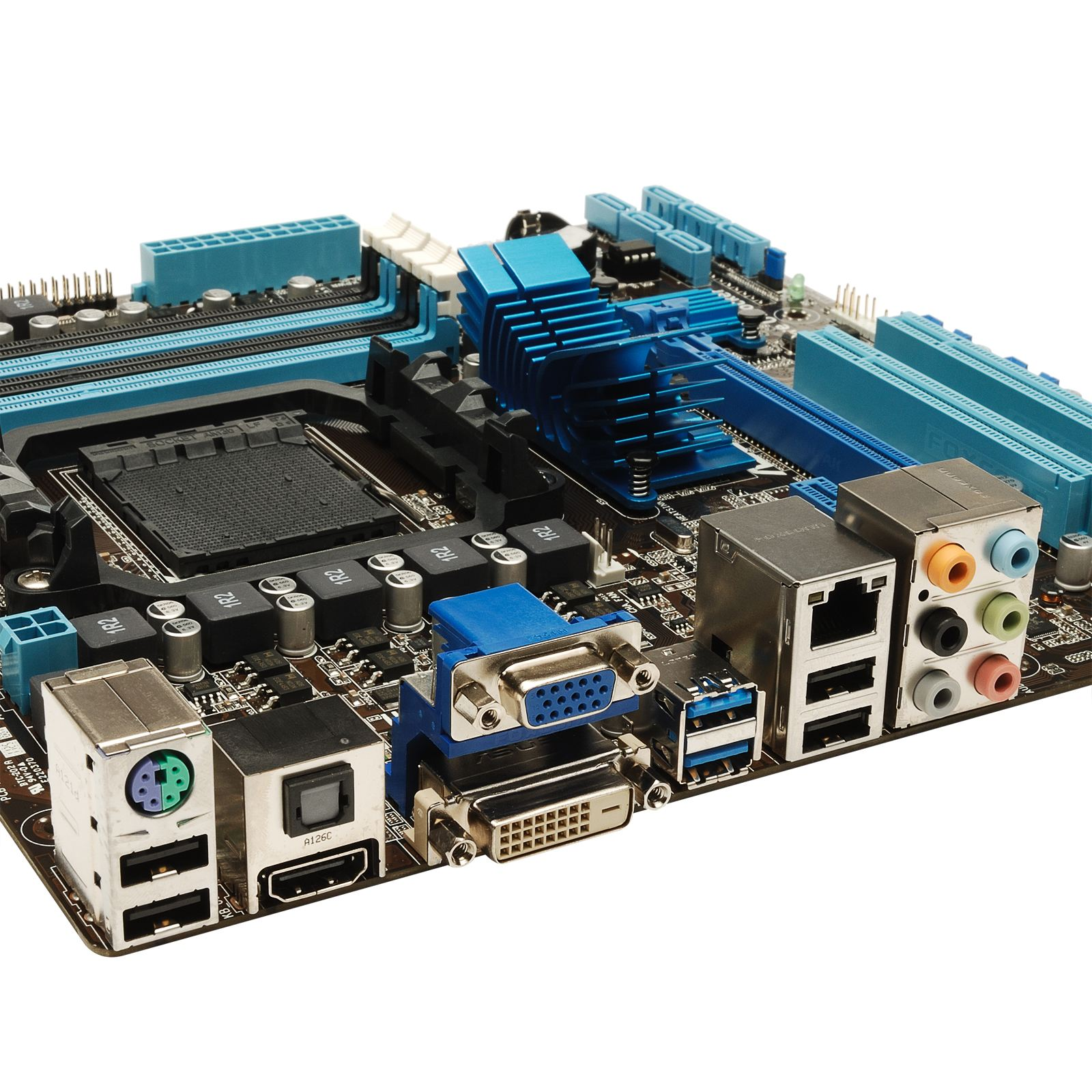

AM3+ ASUS M5A78L-M/USB3
Šifra artikla: 42700
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors |
| Čipset |
AMD 760G (780L)/SB710 |
| Memorijski slotovi | 4 x DIMM, Max. 32GB, DDR3
2000(O.C.)/1866(O.C.)/1800(O.C.)/1600(O.C.)/1333/1066 MHz ECC, Non-ECC,
Un-buffered Memory Dual Channel Memory Architecture |
| Slotovi | 1 x PCIe x16 1 x PCIe x1 2 x PCI |
| Skladišni interfejs | 6 x SATA 3Gb/s port(s),
blue Support Raid 0, 1, 10, JBOD 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board) 2 x USB 3.0 port(s) (2 at back panel, blue) |
| Mrežni adapter |
Realtek, 1 x Gigabit RJ45 Controller(s) |
| Audio |
VIA VT1708S 8-Channel High Definition Audio CODEC
|
| Povezivanje | 1 x PS/2 keyboard/mouse combo
port(s) 1 x DVI 1 x D-Sub 1 x HDMI 1 x RJ45 (RJ45) port(s) 2 x USB 3.0 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) |
| Interni priključci | 3 x USB 2.0 connector(s) support(s)
additional 6 USB 2.0 port(s) 1 x COM port(s) connector(s) 6 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x parallel port connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) |
| Format | Micro ATX |
| Ostalo | Integrated ATI Radeon HD 3000 GPU
Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DVI with max. resolution 2560 x 1600 @ 60 Hz - Supports RGB with max. resolution 2560 x 1440 @ 75 Hz Maximum shared memory of 1024 MB Hybrid CrossFireX Support |
| Saobraznost | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
