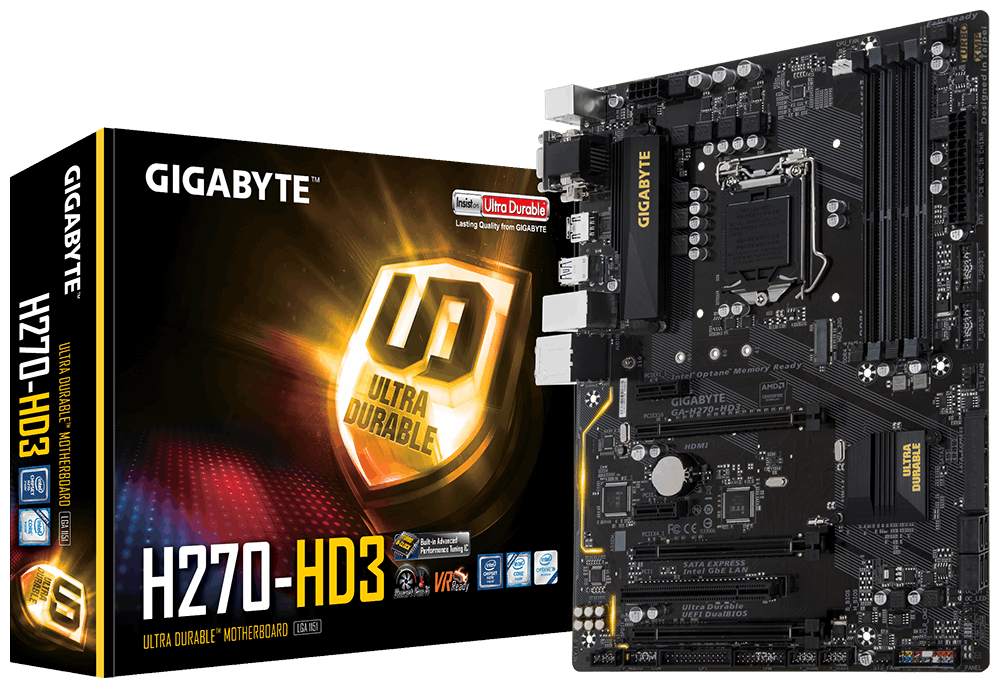

1151 Gigabyte GA-H270-HD3
Šifra artikla: 82028
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | Intel 1151 |
| Čipset | Intel H270 |
| Memorijski slotovi | 4 x DDR4 DIMM ležišta, maksimalno podržano 64GB Dvo-kanalna memorijska arhitektura Podržava DDR4 2400(O.C.) / 2133 MHz memorijske module Podržava ECC UDIMM 1Rx8/2Rx8 memorijske module (operate in non-ECC mode) Podržava non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memorijske module Podržava Extreme Memory Profile (XMP) memorijske module |
| Slotovi | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x16 slot, running at x4 (PCIEX4_1, PCIEX4_2) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x PCI slot |
| Skladišni interfejs | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) 1 x SATA Express connector 6 x SATA 6Gb/s connectors Podržava RAID 0, RAID 1, RAID 5 i RAID 10 |
| Mrežni adapter | Intel® GbE LAN chip (10/100/1000 Mbit) |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Podržava S/PDIF izlaz |
| Povezivanje | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) |
| Interni priključci | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 1 x SATA Express connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |
| Format | ATX |
| Integrisana grafika |
Integrisani grafički procesor - Intel® HD Graphics podrška: |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
