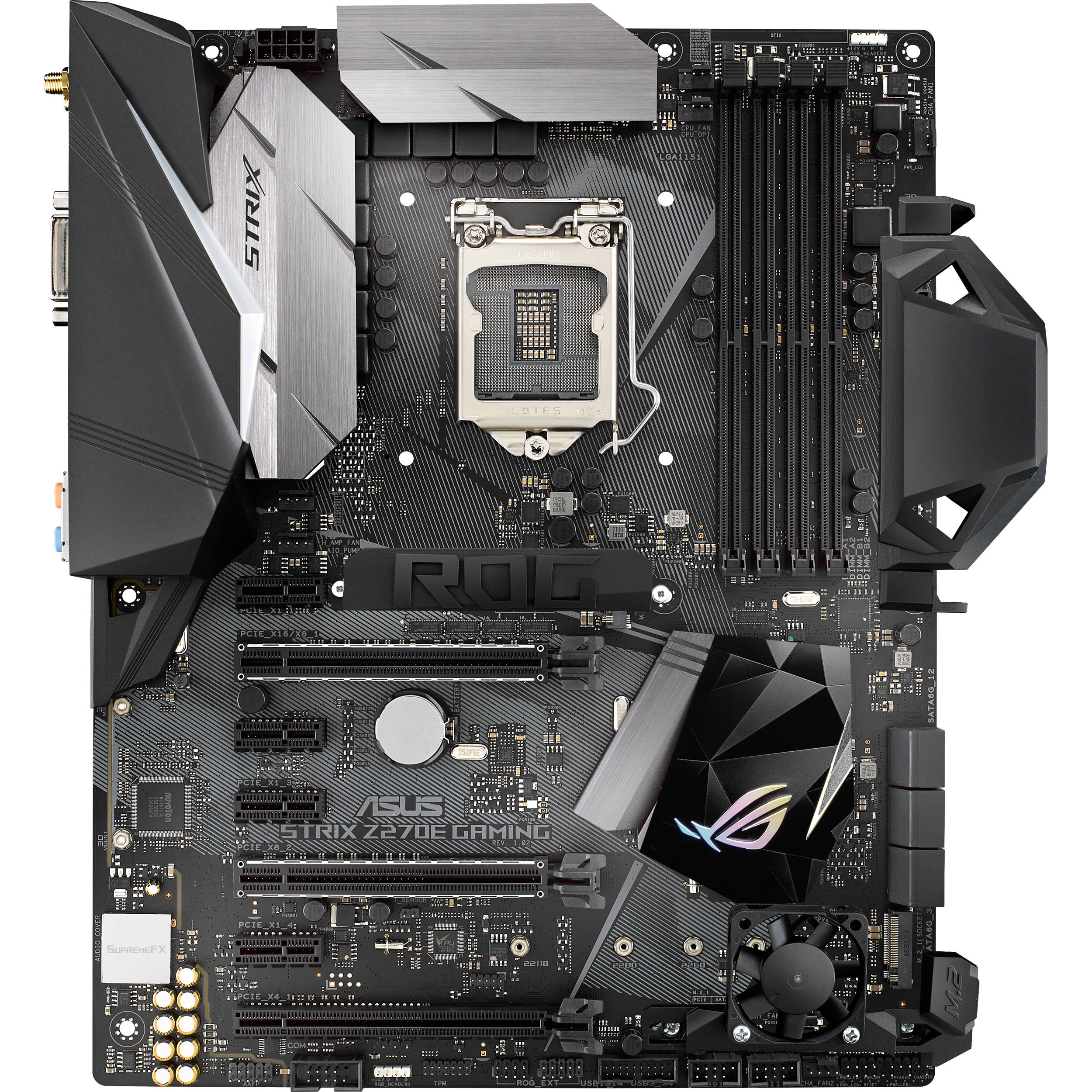

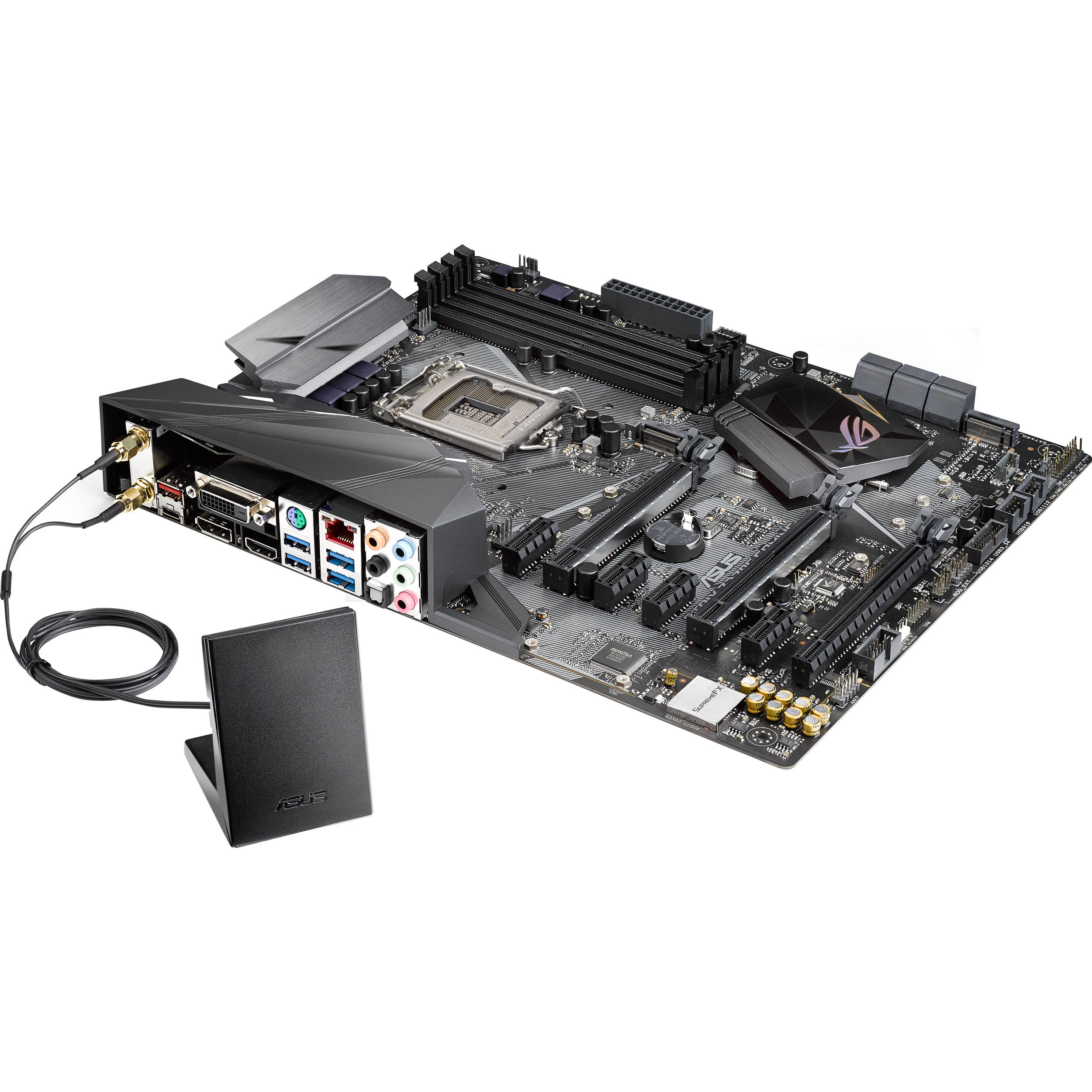

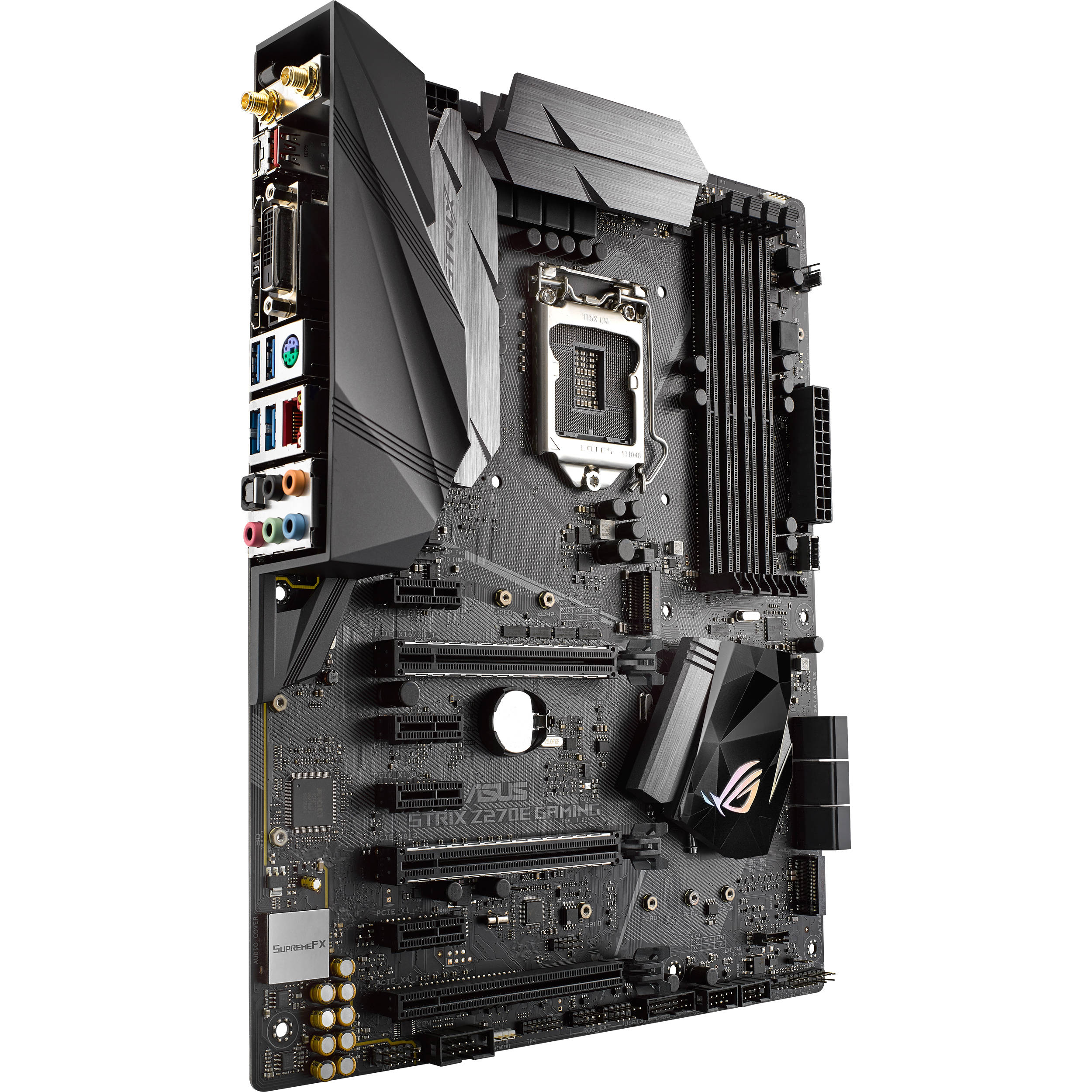

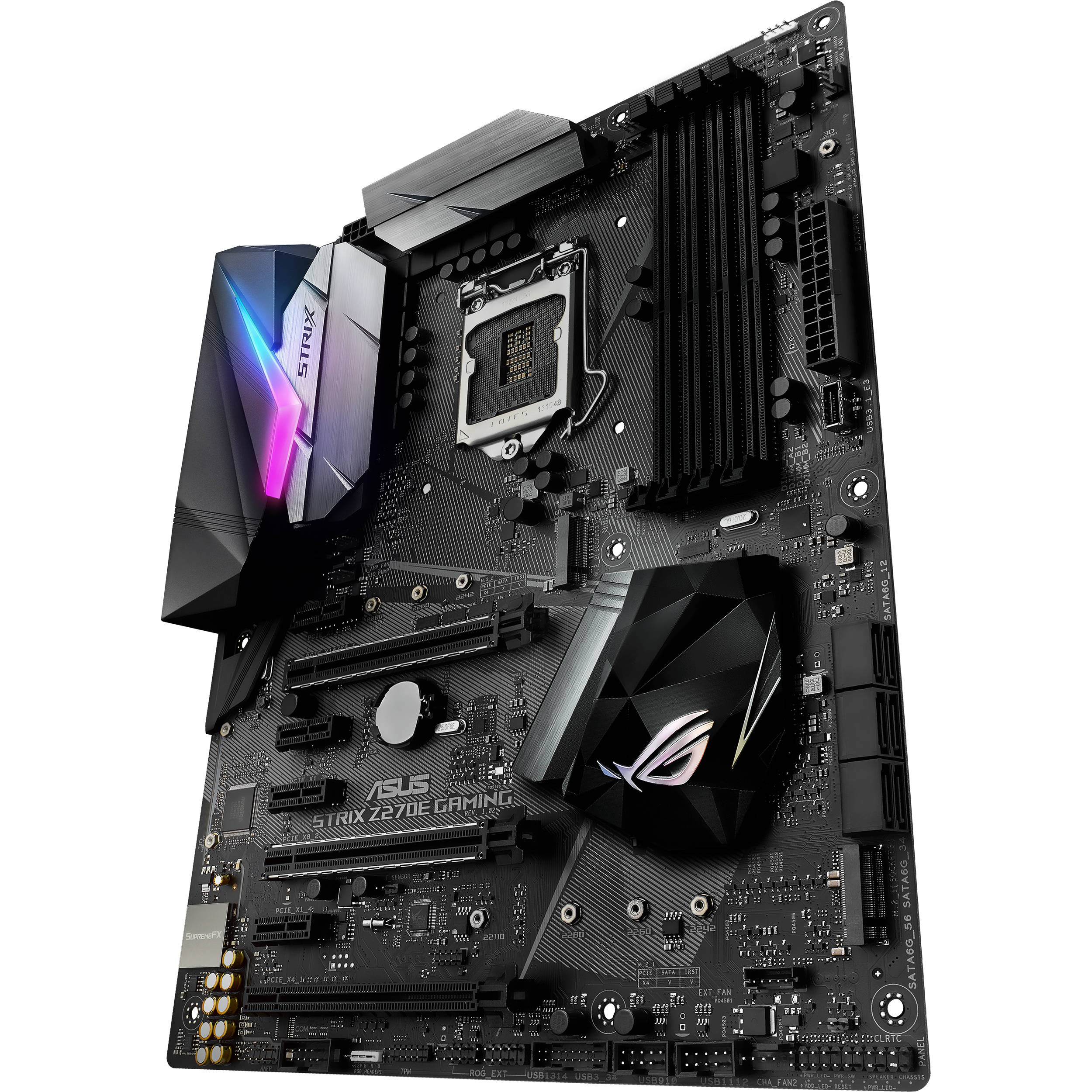

1151 Asus STRIX Z270E GAMING
Šifra artikla: 81022
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | Intel LGA 1151 |
| Čipset | Intel Z270 |
| Memorijski slotovi | 4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz Non-ECC, Un-buffered Memory |
| Slotovi | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (x4 mode) 4 x PCIe 3.0/2.0 x1 Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology |
| Skladišni interfejs | 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Supports Intel Smart Response Technology Intel Optane Memory Ready |
| Mrežni adapter | Intel I219V Anti-surge LANGuard ROG GameFirst Technology Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Bluetooth V4.1 |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A |
| Povezivanje | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x DisplayPort 1 x HDMI 2 x USB 3.1 Type-A + Type-C 4 x USB 3.0 (blue) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0 |
| Interni priključci | 1 x AAFP connector 1 x RGB Header(s) 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x DRCT header(s) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x ROG extension (ROG_EXT) header(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x High AMP Fan header (4-pin) 1 x T_Sensor Connector 1 x AIO PUMP Header 3 x 3D Mount screw port(s) 1 x USB 3.1 front panel connector |
| Format | ATX |
| Integrisana grafika | Da |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
