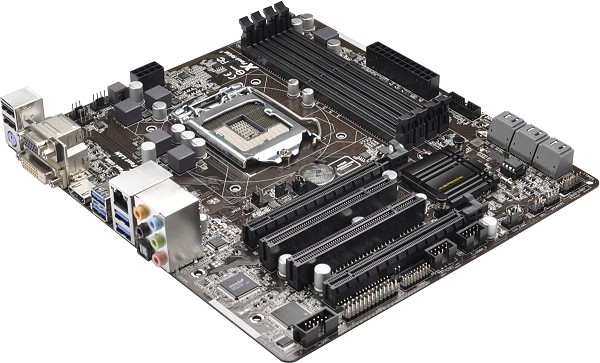

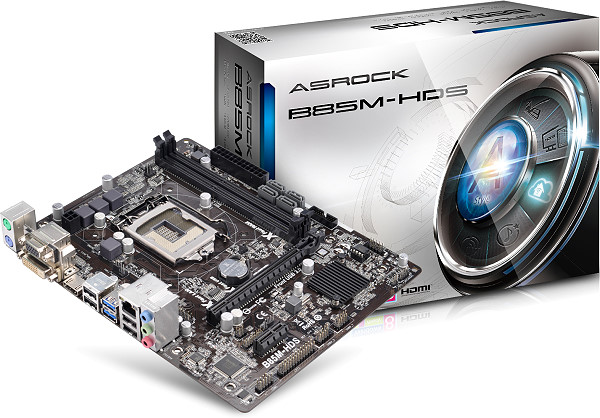

1150 ASRock B85M-HDS
Šifra artikla: 38678
- Opis
- Tehnička dokumentacija
- Komentari
| Procesorsko ležište | Intel 1150 |
| Čipset | Intel B85 |
| Memorijski slotovi |
- Dual Channel DDR3 Memory Technology- 2 x DDR3 DIMM Slots - Podržava DDR3 1600/1333/1066 non-ECC, un-buffered memory - Maksimalni kapacitet sistemske memorije: 16GB - Podržava Intel Extreme Memory Profile (XMP) 1.3 / 1.2 |
| Slotovi | - 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode) - 1 x PCI Express 2.0 x1 slot |
| Skladišni interfejs | - 4 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot Plug |
| Mrežni adapter | - PCIE x1 Gigabit RJ45 10/100/1000 Mb/s - Realtek RTL8111G - Supports Wake-On-RJ45 - Supports RJ45 Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Audio | - 5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
| Povezivanje | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports - 2 x USB 3.0 Ports - 1 x RJ45 RJ45 Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Line in / Front Speaker / Microphone |
| Interni priključci | - 1 x IR header - 1 x Print Port header - 1 x COM Port header - 1 x Chassis Intrusion header - 1 x TPM header - 1 x CPU Fan connector (4-pin) - 1 x Chassis Fan connector (4-pin) - 1 x Power Fan connector (3-pin) - 1 x 24 pin ATX power connector - 1 x 4 pin 12V power connector - 1 x Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports) - 1 x USB 3.0 header (supports 2 USB 3.0 ports) |
| Format | Micro ATX |
| Ostalo | - Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600 - Pixel Shader 5.0, DirectX 11.1 - Max. shared memory 1792MB - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) - Supports HDCP function with DVI-D and HDMI ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI ports |
| Reklamacioni period | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
